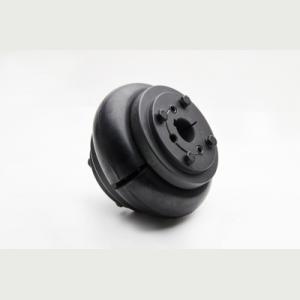

Unique Tyre Coupling

Key Features

Highly Flexible and resilient
Absorbs large Misalignment
Low torsional stiffness
Dampens Shock & Vibration
Flexible element easily replaceable insitu
Ideally suitable for Diesel Engine Drives, Fans, Mills, Compressors, Rolling Mills Pumps, conveyors, and DG Sets.
Available for reputed makes of Diesel Engines and compressors.
Custom Design for Special Reqirements
Torsional Vibration Calculation on request
No Lubrication. Minimum Maintenance
No expensive downtime.
The flexible element is made of Rubber reinforced with Nylon Chords.
Available in Series PH, PX, TC & U
PH Series has the largest range. These have flexible members firmly bolted to clamping elements. There is no possibility of the Tyre slipping out even in case of imperfect installation.
Available for Maximum torques up to 420000 Nm Coupling Diameter up to 1250 mm.
Couplings with Brake Drum available.
Also available with magic Grip Bushing for Quick fitment & removal.
Standard Design-Hubs of close grain cast iron

Flexible member for operation upto 60C
Optional at extra cost Hubs of steel, Flexible member with oil & heat resistant properties, higher or lower stiffness & higher ratings
